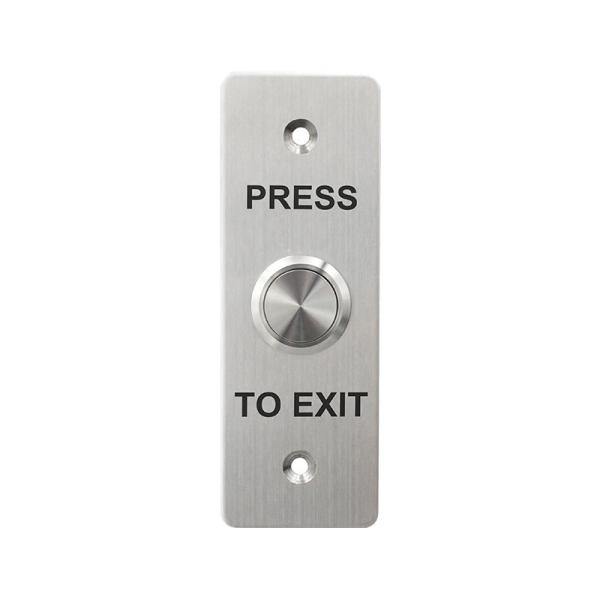

Push to Exit Button for Electric Lock with strong S / S Panel

Name: Push to Exit Button for Electric Lock with strong S S Panel
Brand: CAMEL
Price: 1 USD

Brand Name : CAMEL

Model Number : S84022D

Certification : CE RoHS

Place of Origin : China

MOQ : 5pcs

Price : factory-direct prices

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 40,000pcs per month

Delivery Time : within 5 working days

Packaging Details : paper box for each unit and carton box for 100pcs

Size : 115*40*36mm

Output Contact : NO/NC/COM

Material : 304 Stainless Steel, Metal Button

Sign : PRESS TO EXIT

Power : 12V DC-24V DC

Delivery time : within 3 working days

Certifications : CE & RoHS

Assurance : 3-year-warranty

Contact Now

Push to Exit Button for Electric Lock with strong S / S Panel

Products Key Words

exit button, push button, exit push button, push exit button,push to exit, press to exit, request to exit, Egress device, exit button, exit button with back box, access control

Product Introduction

S84022D series button is casted waterproof but strong stainless steel material with wiring finished and PRESS To EXIT Sign faceplate. Together with NO(normal open) NC (normal close) switch to realize its excellent performance. It’s easy-to-install and most frequently used in the access control systems. The superior design of the buttons and quality construction offer outstanding performance for years come. ANSI size is hot sell items in American countries as well as other countries at this size.

22D switch is flat design with bigger press / contact area for better use and looks better. The contact area diameter is 22mm.

The 1.7mm 304 stainless steel faceplate with excellent casting makes it elegant looking and long time usage.

Technical Parameter

Parameter	Description
Size	1154036mm
Standard Structure	Stainless Steel Panel, Metal Button
Panel Material	1.7mm 304 Stainless Steel
Current	3A /125-250VAC
Output Contact	NO/NC/COM
Mechanical Life	500,000 tested
Operating Temperature	-20℃~+55℃ (14-131F)
Operating Humidity	0-95% (non-condensing)

Details Introduction Photos
